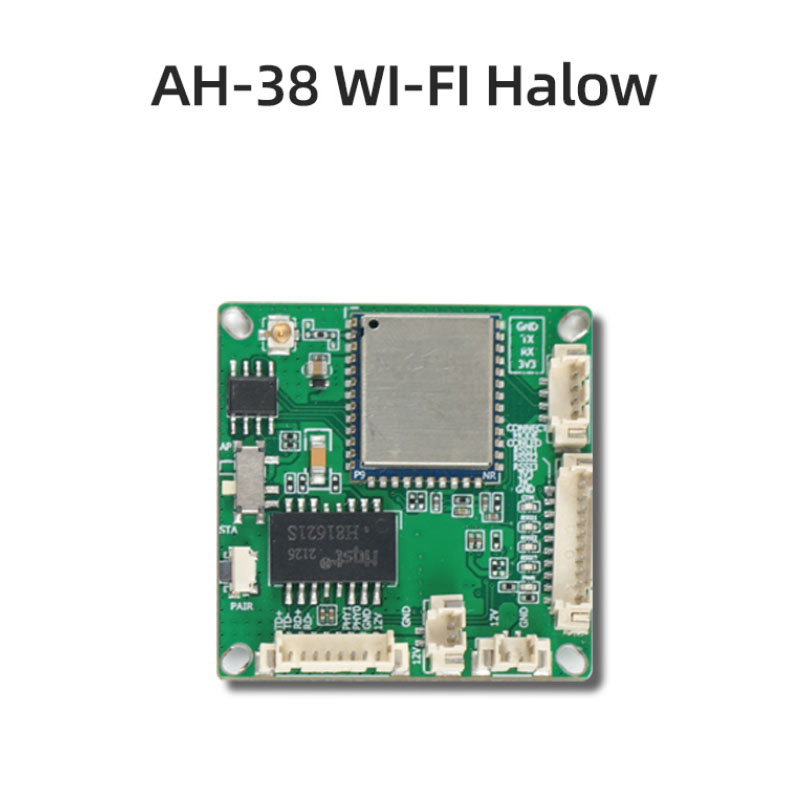

WiFi HaLow Module Image Data Transmission 802.11 on GSM 900MHZ Frequency IP Camera Remote Image Transmitter STA Sender 500-1000M

Work for IP camera transmitting by GSM networks , max. 500 meters with obstacle and 1000 meters in open air .

At least you need a pair to have it to worked , one transmitter and one receiver .

Support max. 4 transmitters 1 receiver  .

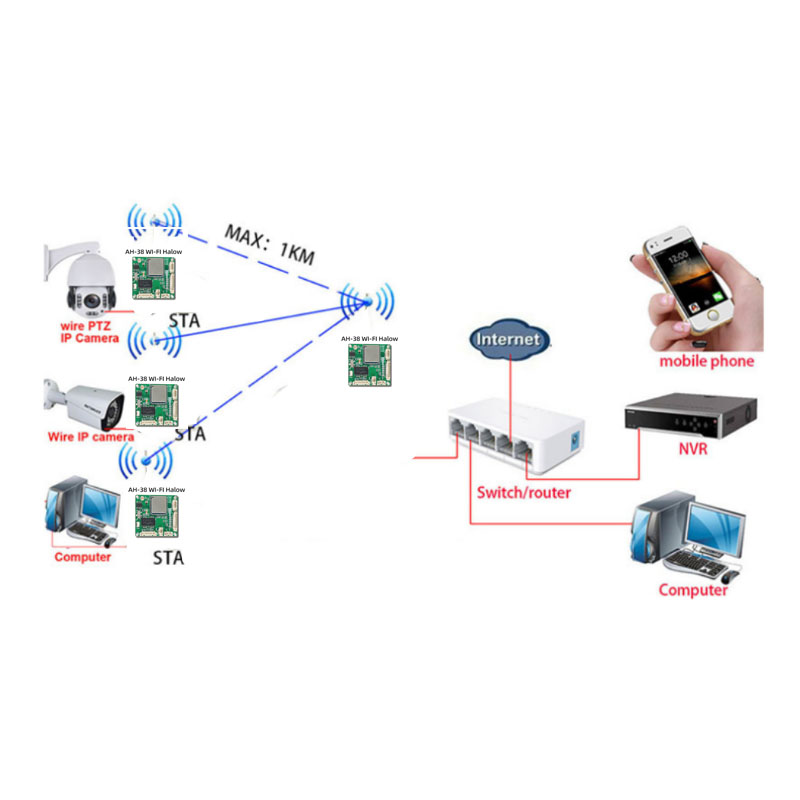

Working diagram:

Based on IEEE802.11ah (Halow) protocol

Data Handle rate : 16Mbps

The 1 km transmission handle rate is higher than 1 1Mbps

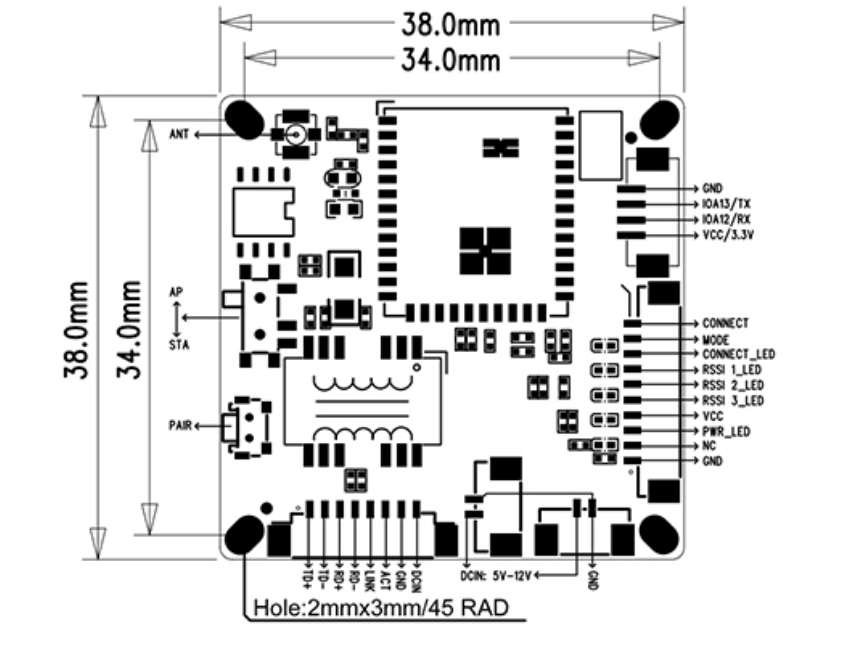

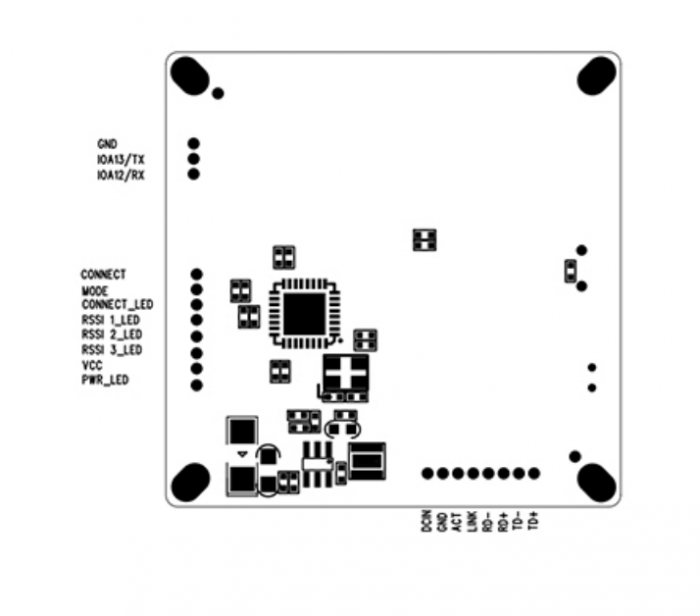

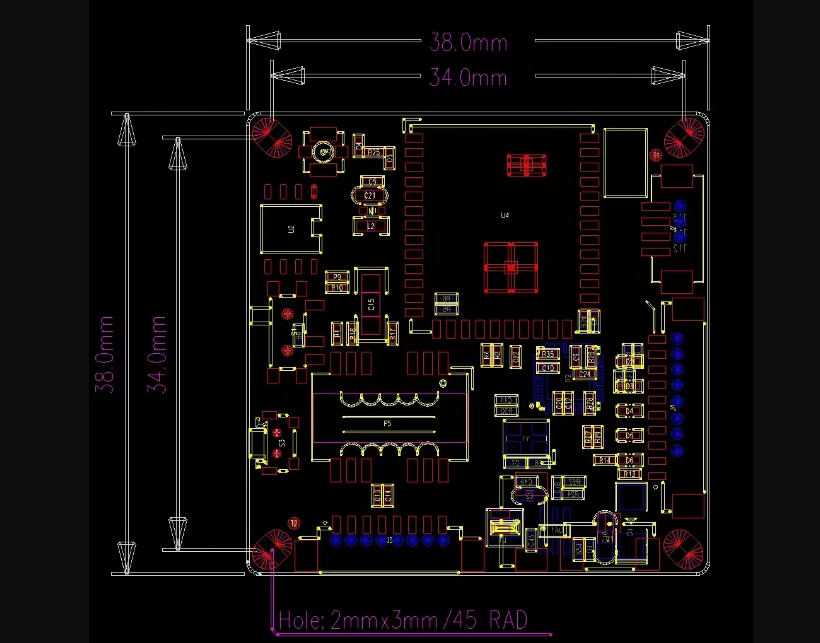

Support multiple interfaces: SDIO/USB/serial port/network port

With super ability to go around obstacle

Suitable for: wireless package; baby video monitoring; UAV ;robot industrial control; Internet of Things; Intelligent wearings

Operating instructions:

1. Buckle one end of the IPEX to SMA wire on the IPEX and connect the other end to the antenna

2. Turn the switch of one module to the AP (receive) position, and turn an other switch to the STA (transmit) position

3. After the module is powered on, the five LED indicators will flash for self inspection. After the self inspection is completed, the AP red indicator of the module will be in on status and the first indicator on the left are always on too

4. Press the pairing button at the same time, then the signal indicators of AP module and STA module will flashe, means successful pairing . Release the pairing button, and the signal indicator led of the two modules will stay on,then finish ,
