Name: 3 in One GPS+Glonass+Beidou 5-30 Meters Cable GNSS Repeater of GPS Satellite Enlarger 3 Band GNSS Booster
SKU: 14726
Availability: InStock

3 in One GPS+Glonass+Beidou 5-30 Meters Cable GNSS Repeater of GPS Satellite Enlarger 3 Band GNSS Booster

$149.00 – $183.00

Weight

2 kg

Dimensions

25 × 15 × 15 cm

set

set with 5meters, set with 10meters, set with 15 meters, set with 20meters, set with 25meters, set with 30meters

SKU: N/A Category: GPS product

Description

For :

1. GPS L1 : great performance
2. Russia Glonass G1 : great performance
2. China Beido B1 : great performance ;

may work for Galileo E1 ( mobile phones does not support Galileo satellite, so not have a test way )

Not for GLONASS L2 , GPS L2 L5 ,Beidou B2 B3,

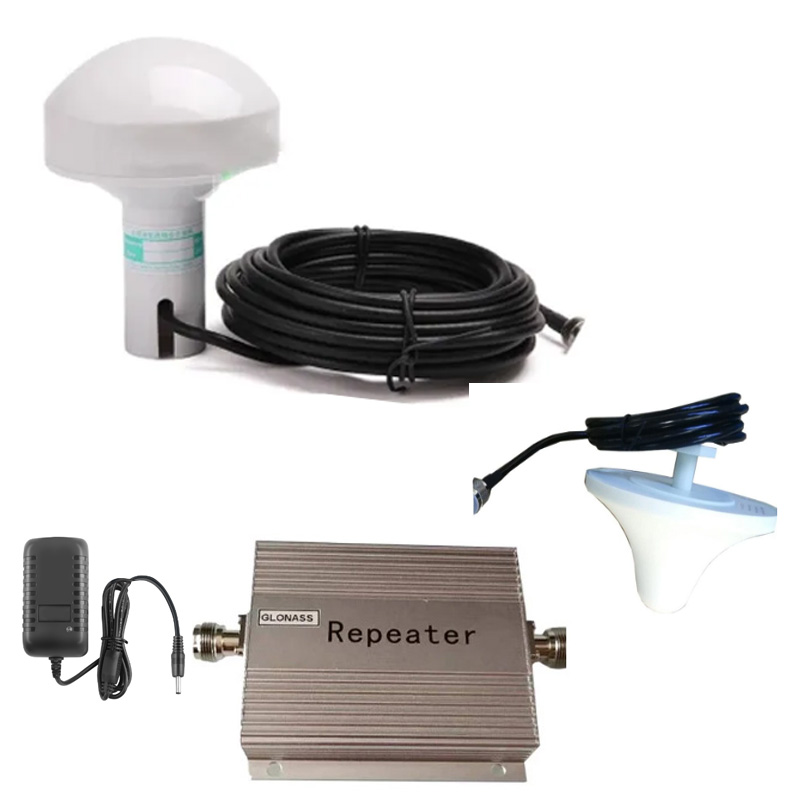

Sales here is a set included :
1x outdoor antenna w.5-30 meters cable(75ohm-5 or rg 58 ) , if you need longer cable please contact
1x Glonass booster
1x power adaptor
1x indoor antenna

This sales does not have bracket for outdoor antenna , please be noted . if you need , please choose a different sales list . if you do not need or you have gotten one , then ok .

Booster feature :
Voltage : 110-220V AC to DC12V 1A (DC3.5 connector )
Connector : N female
Frequency :1602+0.5625*k(MHz)
Gain: 55dbi
Output power : 17dbm
VSVR :≤1.5

Outdoor antenna :
Central Frequency :1575.42±3 MHz
Volt VSWR : 2:01
band width :±5 MHz
impendance :50Ω
Max. Gain : ＞3dBic Based on 7×7cm
Gain range : ＞-4dBic at -90°＜0＜+90°
polarization : RHCP
Amplifier gain :38dB Typical
Noise Figure : 1.5dB
Filter band attenuation :
7dB Min f0+/-20MHz;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
output voltage VSWR : ＜2.0
DIRECT voltage DC : 3V—6V
consumption :10mA
size : 46X38.5X13.5mm
temperature : -40℃~+85℃
waterproof :yes
humidity :95%–99.9%R

Indoor antenna :

1. 250-300 square meters suitable ;
2. Gain: 3 dbi ;
3. Suitable for 698-2700mhz
4. Max. power : 50W ;
5. Impendance : 50O ;
6. Seclusion : ≤1.5
7. Size : Φ180×90
8. Connector : N male;
9. Case : ABS material ;
10. Bandwidth : 83Mhz .
11. Packing : Brown carton ;
12. Net weight :0.35kG
13. CABLE : 3 METERS

Cable :
RG58 or 50-3 Coaxial cable
5-30 meters
Connector : n male .
For : connecting outdoor antenna to repeater .

Test result for reference as below and Guidance :

1. Install outdoor antenna on roof of building , where shall has enough strong satellite signal .Not ok to install antenna on balcony or beside of window .

2. Connect outdoor antenna by cable to repeater , install internal antenna onto repeater too ;
3. Connect power into repeater
4. Test signal receiving

5. Fix repeater and internal antenna in your best place . .
