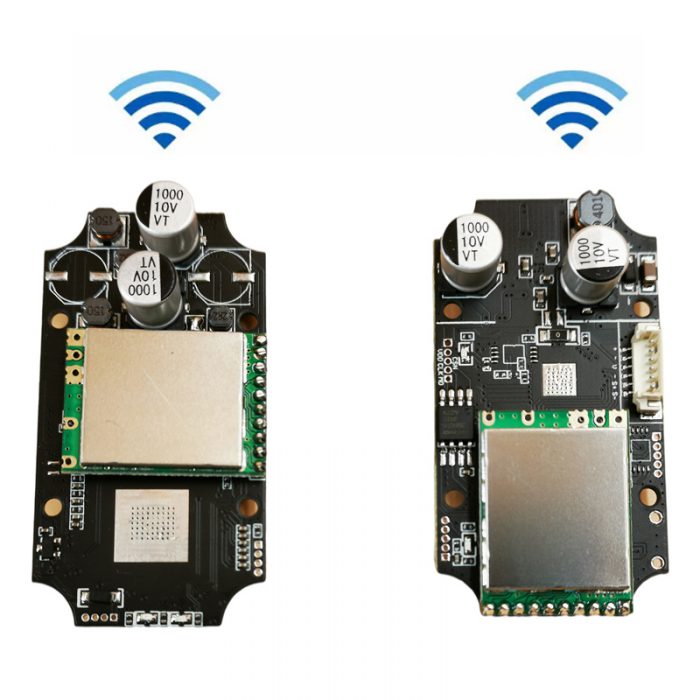

*Working at a wide voltage range of 10V-36V,

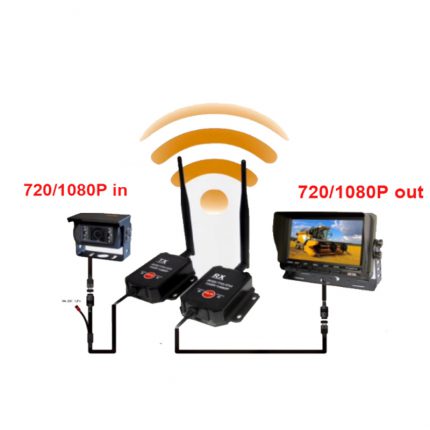

*The module can be directly applied to car video surveillance, in car rear view, wireless security, etc.
*The fast start time is less than 2 seconds.
Boot time: Less than 2S
delay time: 120ms
Resolution:input 720/1080P ; output 720P
Video frame rate:30f/s
Video compression method :MPEG4
Output video format:PAL/NTSC
Operating frequency range:2400 ~ 2483.5MHz
Antenna input output impedance: 50Ω, Typ.
Transmitting power:21dBm
Receiving sensitivity :-89dBm
RF transmission rate:12Mbps
Modulation and demodulation method :FSK/GFSK
Transmission distance:max 1500 meters
Video:Video output impedance
Signal-to-noise ratio : 50dB, Min
working voltage :DC10-36V
Working current : Transmit (TX) 185mA, receive (RX) 140mA
working temperature : -20°C~70°C
Storage temperature : -30°C~80°C
Working humidity : 90%
Only module ,without antenna included.If you need , please contact .
